New product:

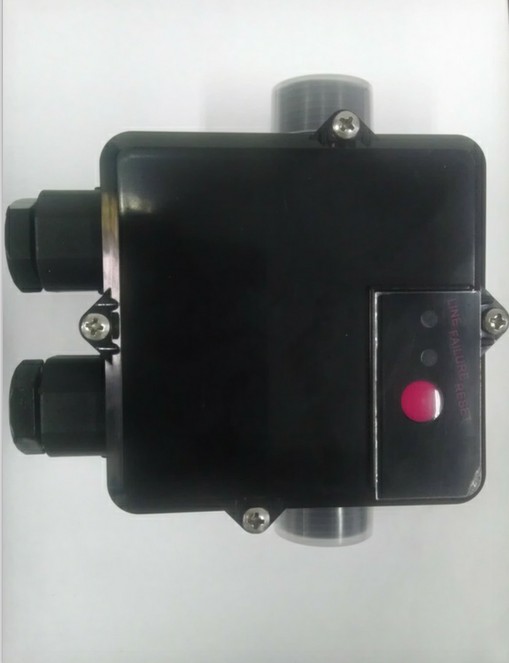

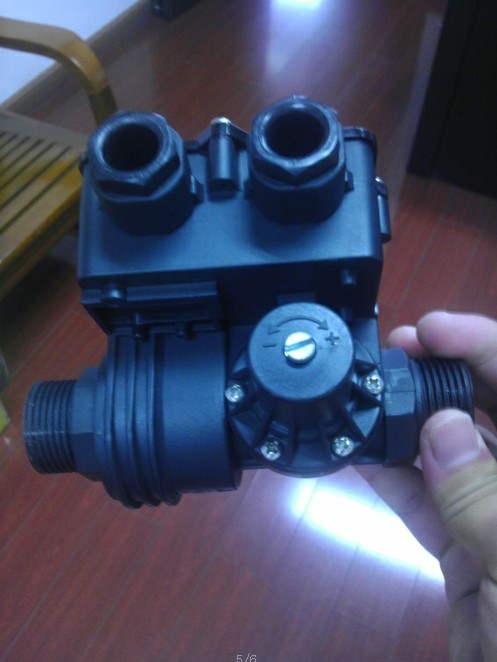

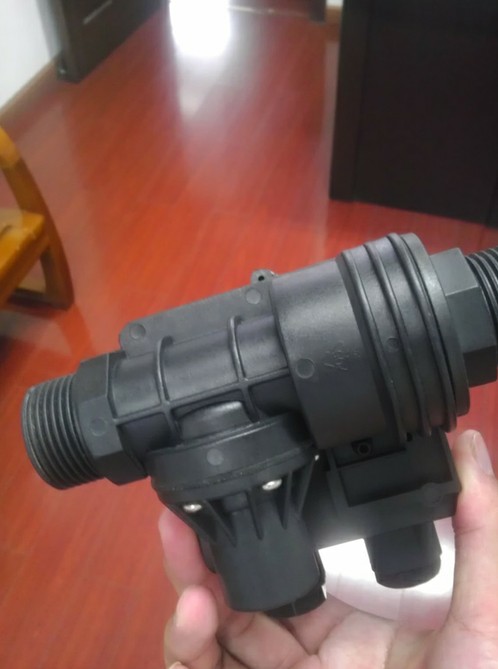

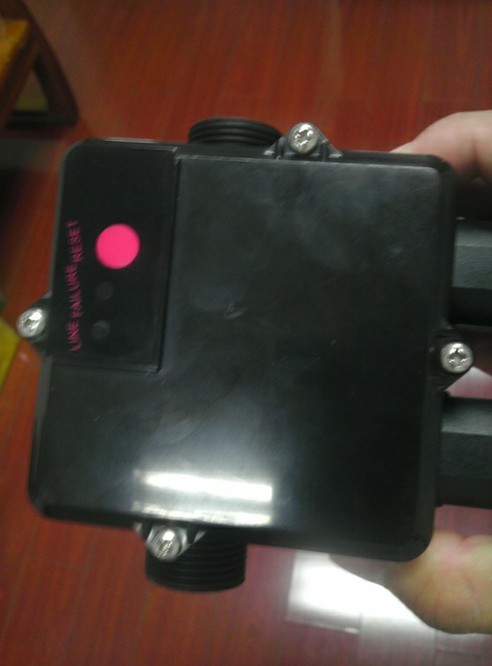

DSK-10 is special design for automatic operate water pump.Once for special fault.Such as short of water,blocked water pipe and so on.This product could test the fault.If the red light shows "fail".At the same time,the stop signal will be transport to the water pump so that protect the water pump.When correct the fail of block,press "restart"so that the pump could restart.When the water pump is working,the controller keep the water supply system a steady pressure status.reduce the water hammer in pipeline.This controller with  outage reset function.This product with pressure control apparatus.The start pressure could be adjusted between 1.5bar-3bar.

Performance Specification:

1.     Rated Voltage:220V-240V 110V-120V

2.     Frequency: 50/60HZ

3.     Max. Current: 10A

4. Power:1.1kw(220V-240V )

         0.75kw( 110V-120V)

5. Take off pressure setting:1.0bar,1.5bar,2.2bar,2.8bar,3bar

6. Max.woking pressure:10bar

7. Port thread:R1"

8. Protecting grade:IP65

9. Max.working temperature:60°C
