DEEP WELL SUBMERSIBLE PUMP

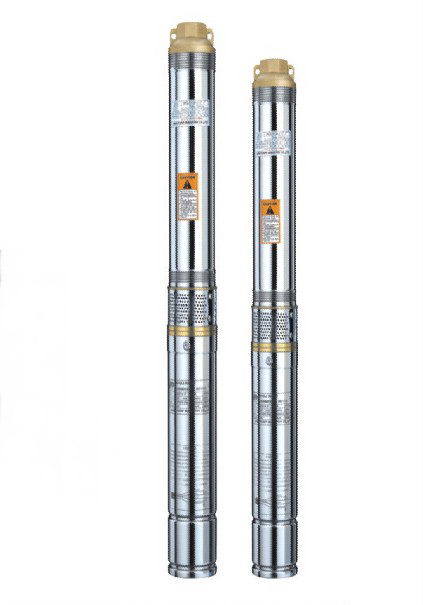

Name: 3.5" 90QJD Deep Well Submersible Pump
Description:

3.5" 90QJD Deep Well Submersible Pump Single phase

Application:

QJD-type multi-level wells small submersible pump, from motors, pumps, sealing three parts. Pumps located in the upper pump for multi-stage centrifugal impeller, drive wizard leaf structure, water pumps and electric motor between the single-end machine mechanical seal, fixed only the department's application of the mouth sealing "o" shaped rubber oil seals for static sealing.

Technical Data:

  • Qmax:  2.8 (m3/h)
  • Capacity from 0.75 to 1.5 (m3/h)
  • Total head from 135 to 38 (m)

Motor:

  • Power:0.37 to 1.5kw(Single phase)
  • Volt/Freq:220~240V/50HZ
  • Insulation Class: B
  • Protection Grade IP58
  • Maximum diameter: Φ83mm
  • Highest temperature of liquid:35°C

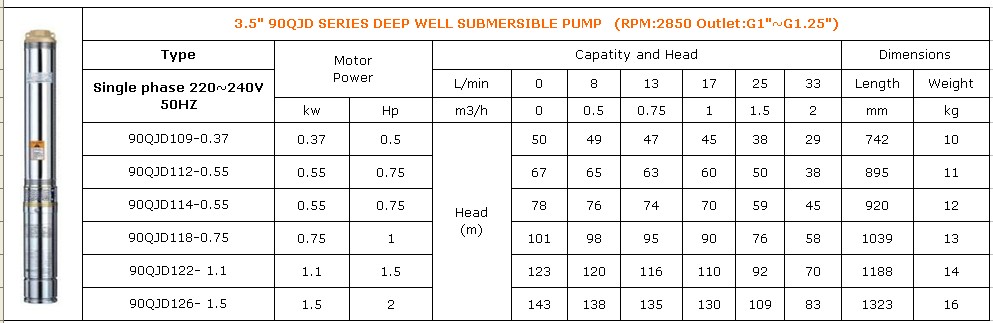

Code Specification Quantity Basket
90QJD109-0.37 0.37KW
90QJD112-0.55 0.55
90QJD114-0.55 0.55
90QJD118-0.75 0.75
90QJD122- 1.1 1.1
90QJD126- 1.5 1.5
