E |
JET-100B |
1 |
60 |
48 |
1"x1" |
9 |
13 |
455X215X235 |
F |
JET-150B |
1.5 |
70 |
50 |
1"x1" |
9 |
14 |
455X215X235 |
Applications:

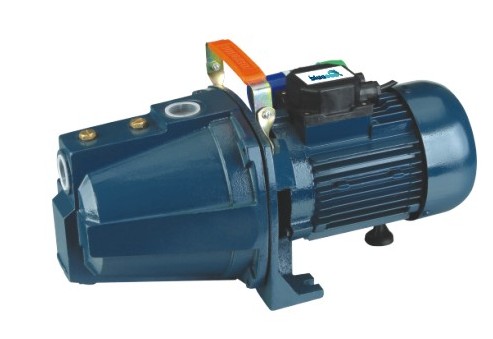

Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 9mt. depth and work perfectly even in soda-water fittings by small and medium sized tanks.
Motor:
Two-pole induction motor (n=2850r.p.m)
Insulation ClassB
Protection IP44
Material:
Pump body: Cast iron
Motor support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Shaft with rotor:45# Steel, AISI 416 stainless steel if request
Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50Hz
Single phase 110V-127v/60Hz if request
Single/three phase 220V/60Hz if request |
