DEEP WELL SUBMERSIBLE PUMP

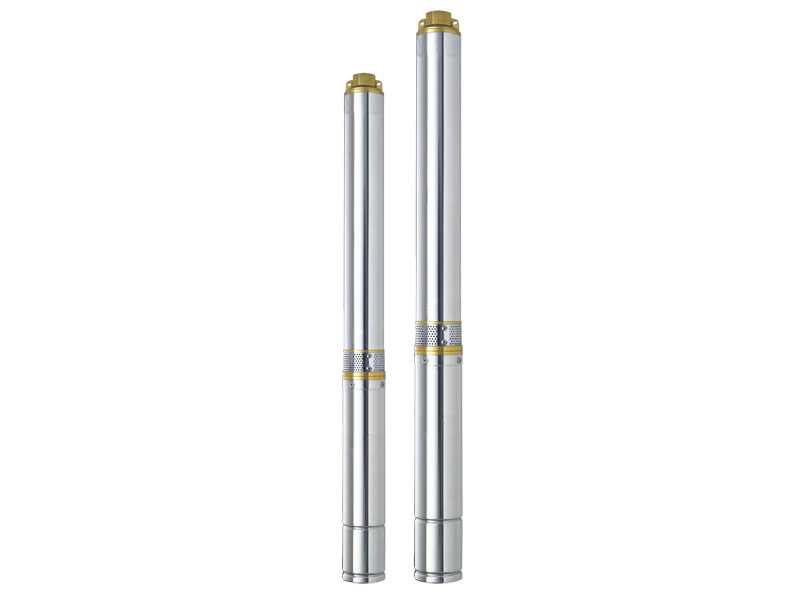

Name: 4" 100QJD Deep Well Submersible Pumps
Description:

QJD Deep Well Submersible Pump 4 inch, Deep Well Submersible Pump 4 inch

Application:

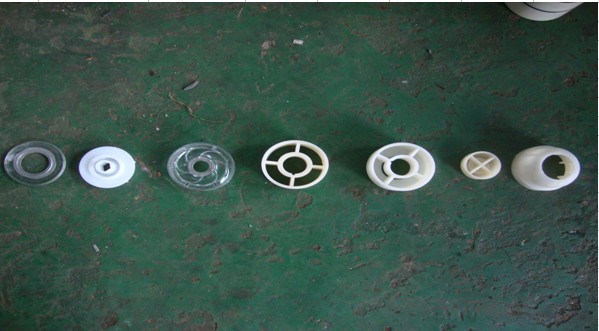

QJD-type multi-level wells small submersible pump, from motors, pumps, sealing three parts. Pumps located in the upper pump for multi-stage centrifugal impeller, drive wizard leaf structure, water pumps and electric motor between the single-end machine mechanical seal, fixed only the department's application of the mouth sealing "o" shaped rubber oil seals for static sealing.

Technical Data:

*Qmax: 2.8 (m3/h)

*Capacity from 1 to 2 (m3/h)

*Total head from 128 to 19 (m)

Motor:

*Power:0.25 to 1.1kw(Single phase)

*Insulation Class B

*Protection Grade IP58

*Maximum diameter: 76mm

*Highest temperature of liquid:35°C

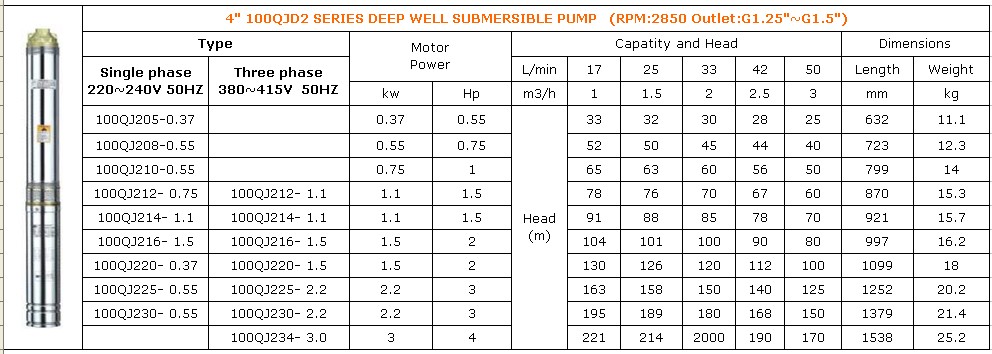

Code Specification Quantity Basket
100QJ205-0.37
100QJ208-0.55
100QJ210-0.55
100QJ212- 0.75 100QJ212- 1.1
100QJ214- 1.1 100QJ214- 1.1
100QJ216- 1.5 100QJ216- 1.5
100QJ220- 0.37 100QJ220- 1.5
100QJ225- 0.55 100QJ225- 2.2
100QJ230- 0.55 100QJ230- 2.2
- 100QJ234- 3.0
