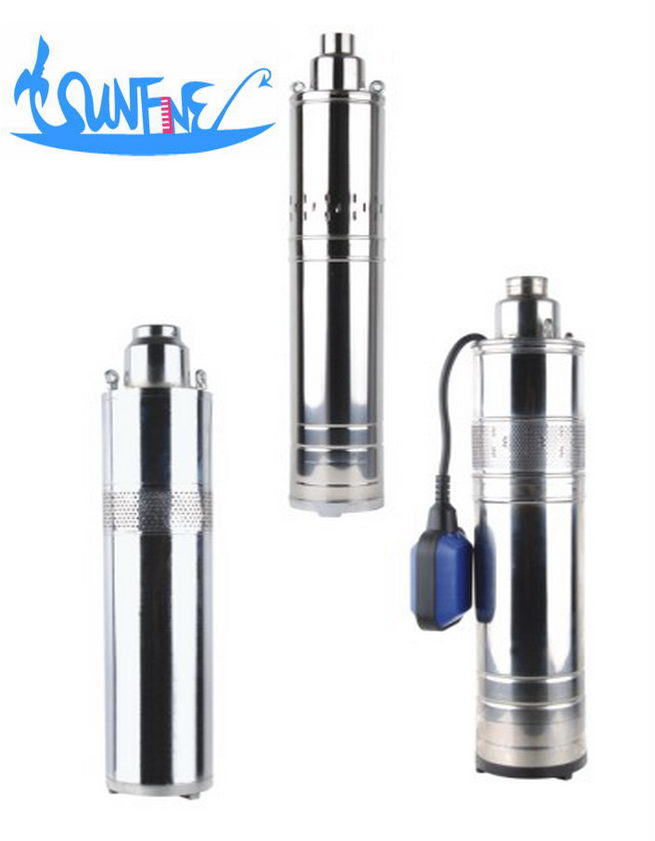

Submersible Screw Water Pump Motor, Electric Submersible Pump
TYPE |
SIZE
Q-H-KW |
Motor Power |
Capacity |
Voltage |
Packing Dimension |
KW |
HP |
m3/h |
l/min |
v |
mm |
QGD |
1-50-0.25 |
0.25 |
0.33 |
1 |
50 |
220/380 |
150x140x165 |
1.2-50-0.37 |
0.37 |
0.5 |
1.2 |
50 |
150x140x165 |
1.8-50-0.5 |
0.5 |
0.7 |
1.8 |
50 |
150x140x165 |
2.5-50-0.55 |
0.55 |
0.75 |
2.5 |
50 |
565x150x190 |
3.5-50-0.75 |
0.75 |
1 |
3.5 |
50 |
620x150x190 |
Structure Feature:
Pump body:Stainless steel
Motor bracket: Stainless steel
Motor shaft:AISI316 SS/AISI 304 SS
Pump shaft:AISI316 SS/AISI 304 SS
Mechanical seal:Silicon carbide_ Tunsten carbide
Coupling and outlet:Cast iron with electrophoretic paint and thermal overload protector. Voltage fluction for 10% more or less is allowed and other voltage for 60HZ is also available. |
