Home Products
DEEP WELL SUBMERSIBLE PUMP

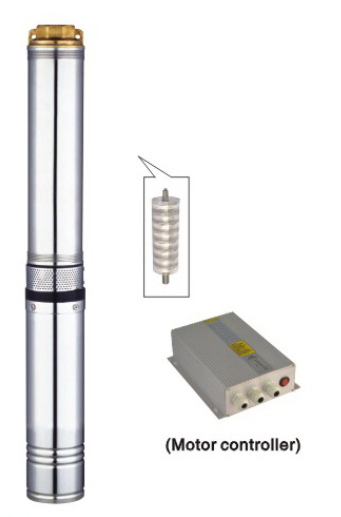

Name: 4SPC solar deep well water pump,solar borehole pump,submersible pump
Description:



solar deep well submersible water pump Stainless steel solar water pumps

Pump performance:











Profile:

Adopt stainless steel casing,shaft core,coupling,water entry base and pump body(or copper alloy water entry base,pump body),

blower Inlet casing,Impeller with new polymer materials of high-strength and wear-resistant.New”floating style”structure of impeller

avoids axial pressure to motor.With combination of motor and controller,the max efficiency is over 85%,relses 20% than the traditional AC one.

Material:

1)Stainless steel casing,shaft core,coupling and pump body,copper alloy connecting,base;blower inlet casing,impeller with new polymer materials

of high-strength and wear-resistant.

2)Water immerslon style stainless steel submersible motor;graphite bearings.

Product Feature:

1)Compact structure,high-lift,noiseless,pollution-free;complete electrical protecting controller device,against under-voltage,over-voltage,

over-flow,overload,waterless etc;automatic recovery;controlling water height as demand.

Easy installation,maintenance-free,safe and rellable.Water depth:1-120m Max.flow:10m3/h

Application:

These electric pumps series are workable within maximum head,as there are no restrictions of BDC.With the addition of high head,

high efficiency and wide high efficiency of increasing oxygen on aquaculture,pumping water from deep well,gardening,fountain and etc.

Working condition:

1)Non-corrosive water;the volume ratio of sand content no more than 3‰,particle size less than 0.5mm.

2)Max medium temperature up to +40℃;PH value remains 5-10

3)Work close to the rated head and must be immersed in water.

Pictures:













Code Specification Quantity Basket
4SPC5.0/28-D24/250 120-360W POWER
4SPC5.5/38-D36/400 200-500
4SPC5.5/58-D48/750 450-900
4SPC6.0/72-D72/1000 600-1200
4SPC6.5/98-D72/1300 800-1500
4SPC10/30-D48/750 450-900
4SPC10/44-D72/1000 600-1200
4SPC10/57-D72/1300 800-1500
