SELF-PRIMING JET PUMP

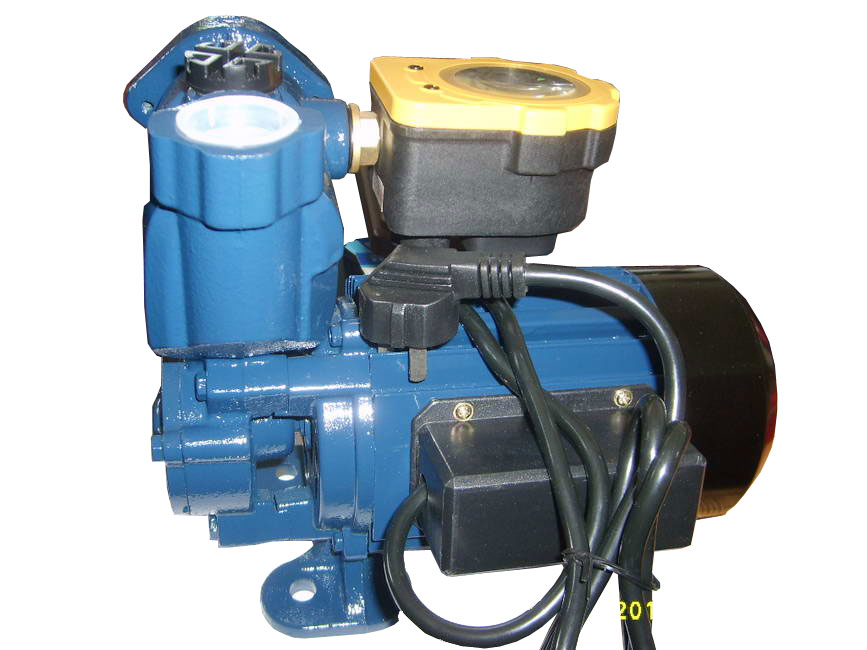

Name: Optoelectronic Switch WZB Model Water Pump Motor
Description:

Model

Input Power

   Voltage

Inlet/Outlet



 Max.Head

  Max.Flow

    Hp

     V/HZ

    m

   L/Min

WZB-125A

   0.167

  220V/50HZ

   1”X1”

    20

   1.8

 WZB-280A

   0.37

220V/50HZ

   1”X1”

    28

   2.2

WZB-370A

   0.5

  220V/50HZ

   1”X1”

    30

   2.3

 WZB-550A

   0.75

  220V/50HZ

   1”X1”

    38

   2.8

 WZB-750A

    1

  220V/50HZ

   1”X1”

    40

   3.4

 WZB-1.1A

   1.5

  220V/50HZ

   1”X1”

    48

   4.4



Applications:

Self-priming water pumps with very high hydraulic performane and a considerable pressure capacity.  Able to pump up to 9mt depth and work perfectly even in soda-water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.

Operating Conditions:

Max.working Pressure 4.0 bar

Liquid temperature up to 60°C

Ambient temperature up to 40°C

Total Suction lift up to 9mt

Continuous duty

Motor:

Two-pole induction motor (n=2850r.p.m)

Insulation Class B

Protection IP44

Material:

Pump body: Cast iron

Motor support: Cast iron

Motor housing: Cast iron

Impeller: Brass

Shaft with rotor: 45# Steel, AISI 416 stainless steel if request

Mechanical seal: Carbon/Ceramic

Single phase 220V-240V/50Hz

Single phase 110V-127v/60Hz if request

Single/three phase 220V/60Hz if request
