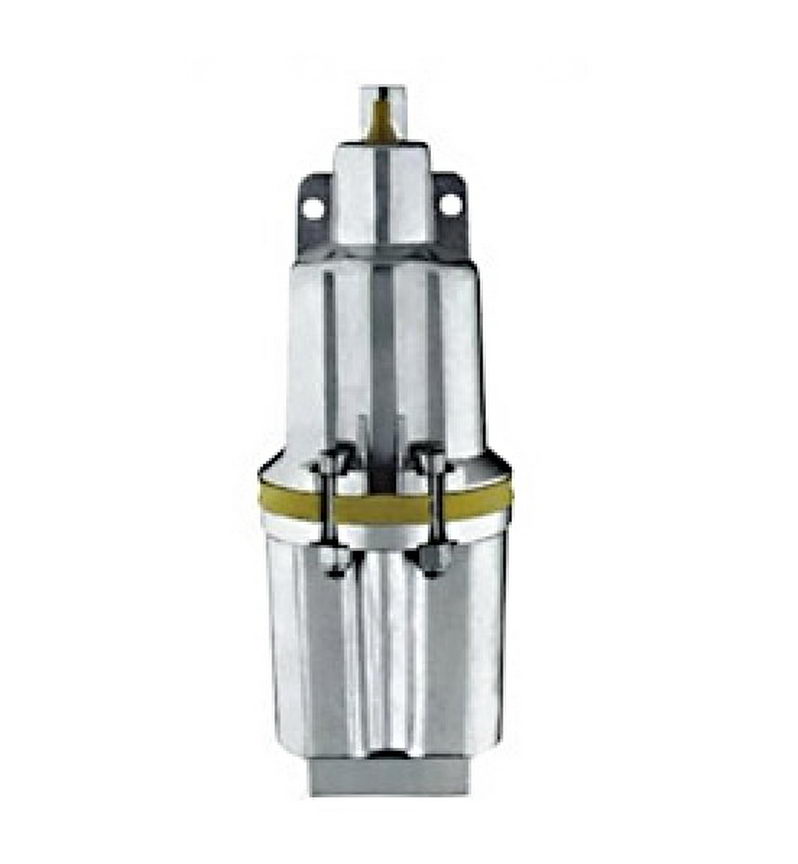

VMP60-2 Vibration Pump for clean water
NO. |
TYPE |
POWER |
OUTLET |
MAX.FLOW |
MAX.HEAD |
DIAMETER |
G.W |
PACKING DIMENSION |
|
|
(HP) |
(mm) |
(L/min) |
( m) |
(mm) |
(Kg) |
(mm) |
A |
VMP60-2 |
0.37 |
14 |
18 |
70 |
105 |
3.75 |
295X109X182 |
Application:
Vibration masking pump (VMP60-2) is designed for clear water lifting from boreholes
with a diameter over 105mm and depth up to 70 meters, water wells and any
reservoirs, it can be used for waterring vegetable gardens, as well as for domestic
water supply.
Working condition
Main voltage: 110---230 V
Main frequency: 50 HZ / 60 HZ
Suitable fluids: Clear water
Fluid temperature range: 0---40 °C
Motor
Protection Degree IP68
Insulation Class B
